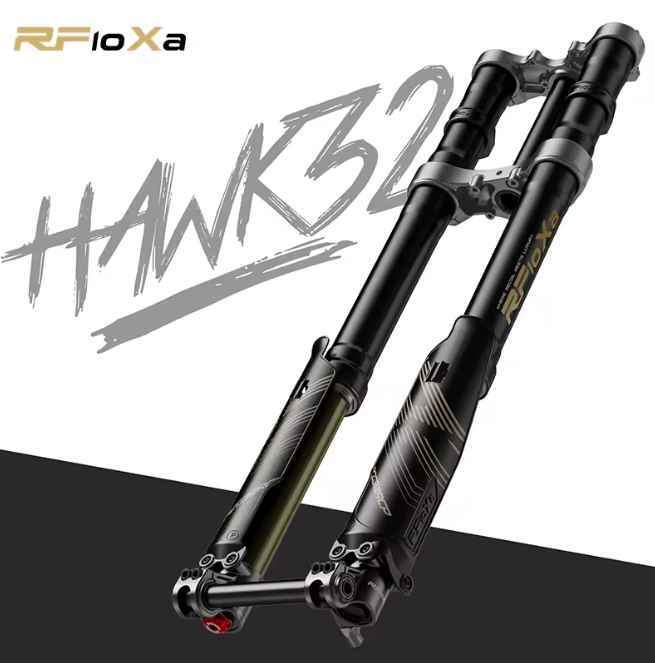

Rfloxa Forks Surron LBX

Note: Not include bottom bearing. If you need a bearing kit, please order bearing kit below:

https://www.rflo-xa.com/products/rfloxa-bearing-kit-fork-headset

Fitment Bike:

• Talaria MX3 / MX4 / XXX / XXX Pro
• SurRon LBX, LBS, L1E
• E-Ride Pro S / SS 1.0/2.0
• Rawrr Mantis / Mantis X
• 79 Bike Falcon M /  PRO / GT
• Ventus One
• Ventus One Plus (Need 8mm Spacer for install)
• RFN Apollo
• Rerode R1
• SRPNTMOTO


Not Fit Bike Model:

• Rawrr Mantis X PRO

Weight:

• 45lbs spring -  ≤85kg
• 60lbs spring - 85kg-130kg (for lots of jump)
• 45-60lbs progressive spring - 80kg-130kg

FEATURES:

• Center Distance: 750mm
• Main Piston Travel: 203mm
• Tube Diameter: ∅37mm
• Caliper Mount Spacing: 74mm
• Disc Brake Size: ∅203mm (Upgradeable)
• Suitable For: Electric Dirt Bikes, Downhill Bikes
• Damping System: Inverted Oil-Spring
• Adjustments: Multi-stage Compression, Rebound, Spring Preload
• Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
• Spring Wire: 55CRSI
